全自動一拖二平面口罩機生產線
全自動一拖二平面口罩機生產線
Automatic One With Two Surgical Mask Making Machine
設備型號:BZ-2
Equipment model: BZ-2
設備名稱:全自動一拖二平面口罩機
Equipment description: Automatic One With Two Surgical Mask Making Machine
一 |
基本說明 |
備注 |
|
|
Basic information |
Remark |
|
1 |
設備簡介 |
人員上手快,大大提高生產效率,僅需一人操 作,變頻調速該產線實現平面口罩的全自動化生產,主要包含卷材上料、折疊壓合、鼻梁筋上料、口罩成型、口罩切斷、耳帶上料及焊接、成品下料等工藝,完成從卷料原材料到口罩成品的整個生產過程。生產的口罩具有佩戴舒適,無壓迫感,口罩過濾 效果好,契合人的臉型,可適用于醫療、電子、礦業、建筑等行業。 |
|
|
Equipment brief introduction |
Easy for operator, greatly improve production efficiency, only one operator required, frequency conversion speed regulation of the production line to achieve the full automatic production of plane masks, mainly including coil feeding, folding press, bridge rib feeding, mask molding, mask cutting, ear tape feeding and welding, finished product cutting process, complete the whole production process from raw materials to mask finished products. The mask produced has comfortable wear, no pressure, the mask filter effect is good, fit the face shape, can be used in medical, electronic, mining, construction and other industries. |
|
2 |
設備重量 |
≤5000kg,地面承重≤500KG/sqm |
|
|
Equipment weight |
≤5000kg,Ground load≤500KG/sqm |
|
3 |
產能 |
120只/分鐘 (日產14萬只以上) |
|
|
Productivity |
120Pcs/minute (More than 140,000pcs/day) |
|
4 |
電源及功率 |
AC220V,50Hz,9kw |
|
|
Electric and power |
AC220V,50Hz,9kw |
|
5 |
氣源及用量 |
0.5-0.7Mpa 0.03cbm/min |
|
|
Air pressure |
0.5-0.7Mpa 0.03cbm/min |
|
6 |
設備外形尺寸 |
長x寬x高 4600mm×4500mm×1800mm |
|
|
Overall size |
LxWxH 4600mm×4500mm×1800mm |
|
7 |
使用環境 |
溫度10~35℃、濕度5-35%HR, 無可燃性、腐蝕性氣體、無粉塵(潔凈度不低于10萬級) |
|
|
Use environment |
Temperature 10~35℃, humidity 5-35% HR, non-flammable, corrosive gas, dust free (cleanliness not less than 100,000 class) |
|
8 |
生產合格率 |
≥99% |
來料不滿足要求、員工不當操作除外 |
|
Product qualify rate |
≥99% |
Except the incoming materials do not meet the requirements and the improper operation of the staff |
9 |
設備故障率 |
≤2% |
指設備自身所產生的故障 |
|
Equipment failure rate |
|
Failure of the device itself |
二 |
技術性能參數 |
||
|
Technical performance parameters |
||
|
伺服傳動, 機架全部高強鋁型材,抗磨損,機箱內配置功率增大器; 一體化生產,僅需一人操作,變頻調整; 高速生產,日產口罩14萬只以上,按20小時; 生產多種不同產品,更換模具可生產不同形狀不同規格的產品。 |
||
|
Servo motor drive, frame all with high strength aluminum profile, wear resistance, cabinet inside equipped with power booster; Integrated production, only one person operation, frequency conversion adjustment; High speed production, productivity more than 140000 masks per day (running for 20 hours); Produce variety shapes of different mask, make replacement of molds to produce different shapes and specifications of mask. |
||
三 |
其他 |
||
|
Others |
||
|
設備出廠前調試需要需方提供物料各 1 卷 |
||
|
One roll of each material must be provided by buyer for machine commissioning before delivery |
產品圖

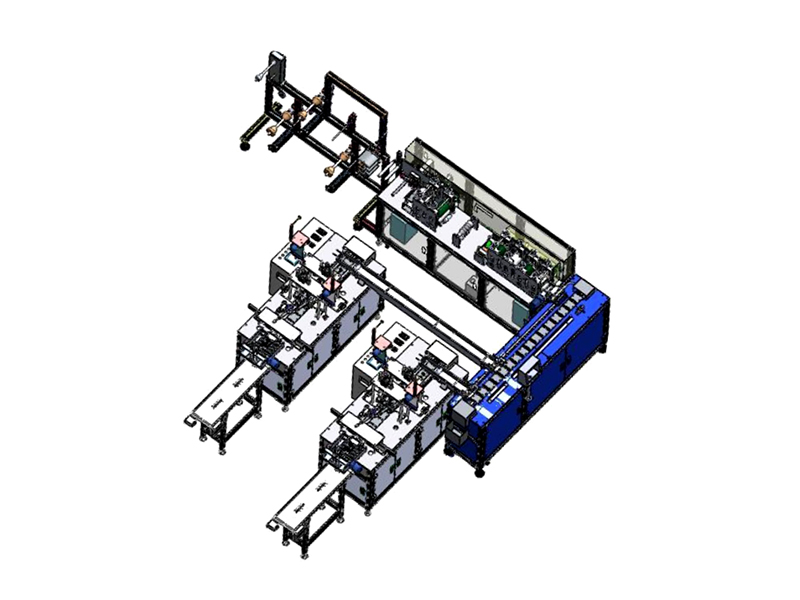

Lay-out
